Our toroidal transformers are designed to deliver high efficiency, low electromagnetic interference, and compact form factors for a wide range of electrical and electronic applications. Constructed with a ring-shaped core and precision-wound coils, they offer superior magnetic performance with minimal core losses and reduced stray fields compared to conventional transformer designs.

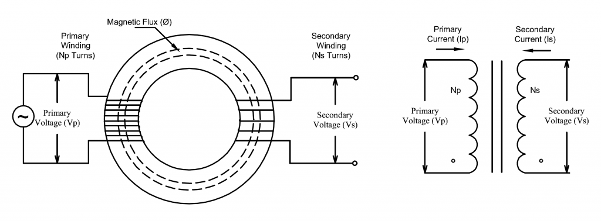

How does a Torodial Transformer work?

A toroidal transformer operates under the principles of electromagnetic induction similar to a linear transformer. It features a toroidal core surrounded by primary and secondary windings. As current flows through the primary winding, it produces an electromagnetic force (EMF) that generates a current in the secondary winding; this process allows power to be transferred from the primary coil to the secondary coil.

What makes a good Toroidal Transformer?

A high-quality toroidal transformer is defined by premium materials, precise manufacturing, and optimized winding techniques. These factors directly affect efficiency, reliability, and noise levels.

High-quality core material

The core and copper account for most of a transformer’s performance and cost. Premium toroidal transformers use virgin grain-oriented silicon steel formed into a continuous strip, ensuring low losses, high efficiency, and minimal vibration.

Low noise and high efficiency

Thanks to their closed magnetic path and lack of air gaps, well-designed toroidal transformers operate with very low audible noise and reduced magnetic interference, without sacrificing size or performance.

Copper windings

Copper is the preferred winding material due to its superior electrical and thermal properties. Toroidal windings are evenly distributed around the core, allowing excellent heat dissipation and stable operation.

Advanced winding techniques

Carefully controlled winding tension and uniform wire placement are essential. Proper winding minimizes leakage inductance, prevents insulation damage, and improves long-term reliability.

Bank winding construction

In bank winding, the coil is divided into multiple segments around the core. This results in better magnetic balance, improved electrical performance, and lower EMI.
